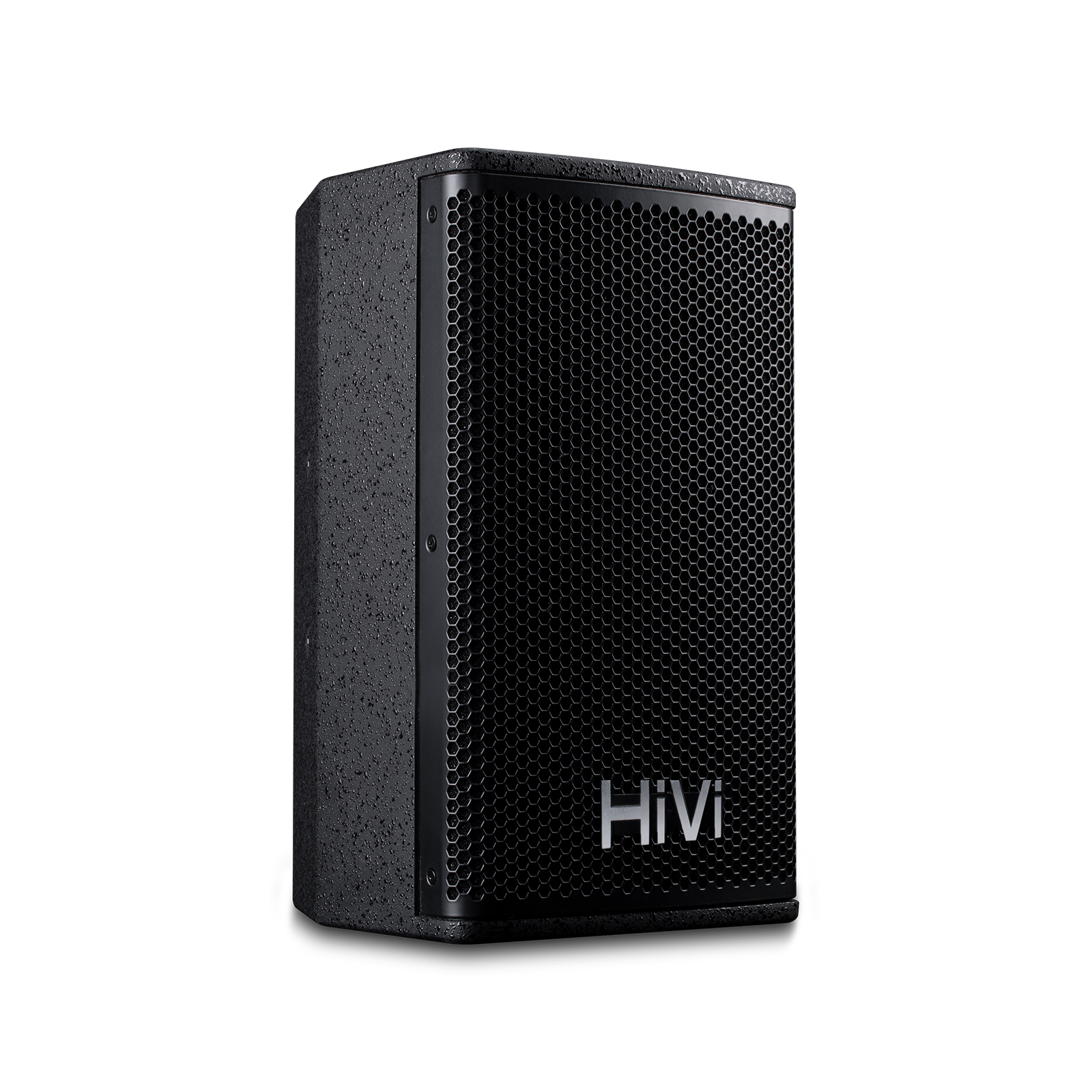

The MAX series is a new monitor-level professional speaker system launched by Swans Group. The compact symmetrical cabinet design is made of high-quality panels, and is coated with high-strength wear-resistant black spot paint, so that the system can be effectively protected during transportation or installation. The product adopts Swans professional high-power high-bass custom unit, wide-directional horn design, and built-in professional electro-acoustic technology optimized frequency division network, the sound is clear, the sound range is wide, and the dynamics are powerful.

All series are equipped with trapezoidal angles, support bases and M8 lifting points, which can make the system installation more diversified, facilitate engineering installation and adapt to various uses, and can also effectively restrain.

Model

MAX1

MAX2

Frequency Range

75Hz-25KHz

70Hz-25KHz

Rated Power

200W

300W

Sensitivity

95dB

96dB

SPL

(peak)

124dB

126dB

Rated Impedance

8Ω

8Ω

Woofer

1*6.5"(38mm)

1*8"(50mm)

Tweeter

1*34mm Compressed Drive

1*34mm Compressed Drive

Connection

NL4(1+,1-)

NL4(1+,1-)

Coverage HXV

120°X60°

120°X60°

Finish

Black wear-resistant polyurea waterproof painting

Black wear-resistant polyurea waterproof painting

Installation

M8 hanging type、stand

M8 hanging type、stand

Dimension(mm)

(W*H*D)

215x380X240

240x415X260

N.W.(±10%)

7.5Kg

8.5Kg

Product Dimension and Structure Diagram

Installation
