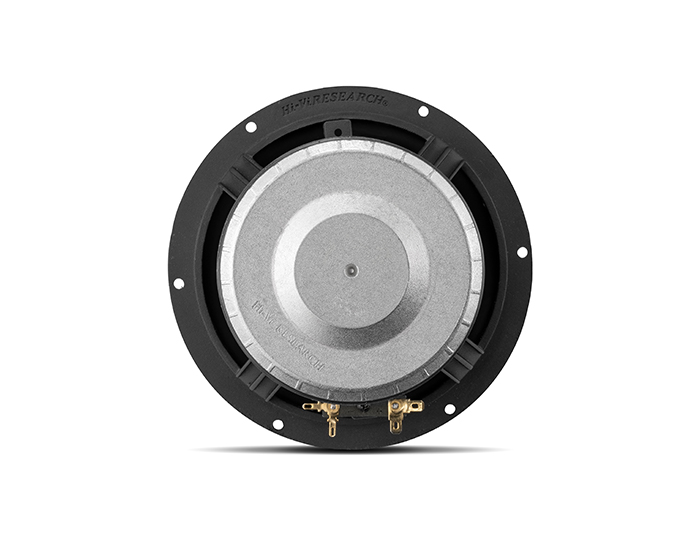

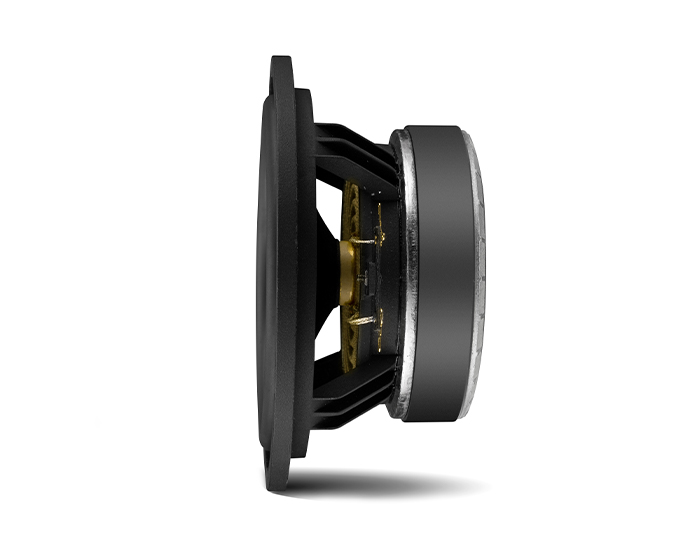

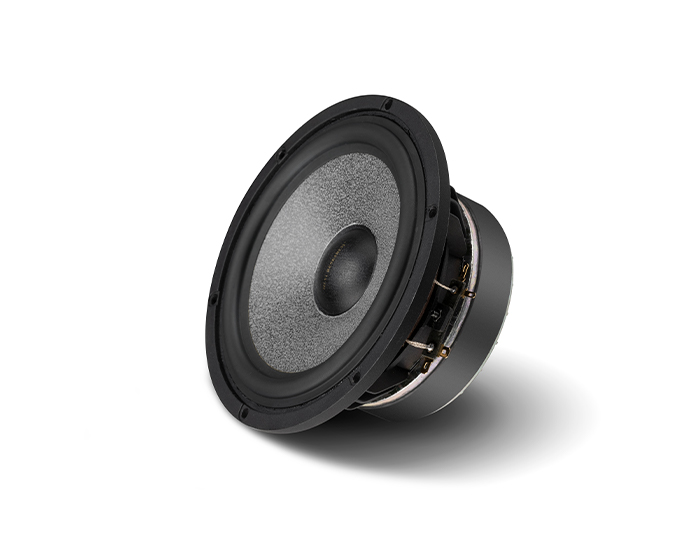

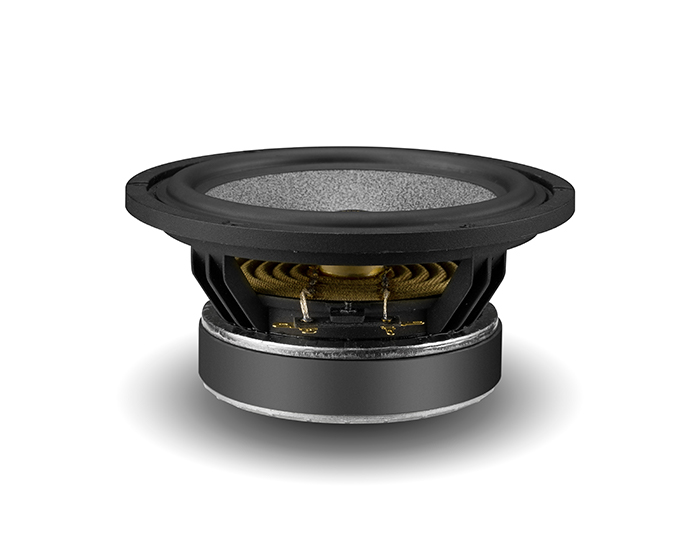

Swan C6.5 Mid-bass Speaker
$ 88.00
Postage : $0.00
Speaker Driver C Series
Stock:
0
Design Features:
Leading Small/Thiele parameter optimization design technology-convenient cabinet design!
German imported paper and fiber mixed material diaphragm, surface marbled treatment-natural and accurate sound / German fatigue-resistant and high-loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability, high stability and linear centering support-improve compliance Air compression characteristics/single-magnet high-performance large magnetic circuit system-powerful linear drive source/HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/finite element precision computer simulation design integrated high-density aluminum basin frame -Eliminate harmful resonance / high-power, high-temperature, no eddy current loss AL voice coil skeleton-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
Leading Small/Thiele parameter optimization design technology-convenient cabinet design!
German imported paper and fiber mixed material diaphragm, surface marbled treatment-natural and accurate sound / German fatigue-resistant and high-loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability, high stability and linear centering support-improve compliance Air compression characteristics/single-magnet high-performance large magnetic circuit system-powerful linear drive source/HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/finite element precision computer simulation design integrated high-density aluminum basin frame -Eliminate harmful resonance / high-power, high-temperature, no eddy current loss AL voice coil skeleton-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the midrange unit in the three-way system.
| 惠威 C6.5 技术参数 | |||
| 参数名称 | 符号 | 数值 | 单位 |
| 基本应用参数 | |||
| 额定阻抗 | Z | 8 | Ω |
| 谐振频率 | Fs | 53 | Hz |
| 额定功率 | Pnom | 60 | W |
| 最大功率 | Pmax | 120 | W |
| 灵敢度(283V/1m） | E | 88 | dB |
| 重量 | W | 2.18 | kg |
| 音圈 | |||
| 音圈直径 | ∅ | 25 | mm |
| 直流电阻 | Re | 6.5 | Ω |
| 音圈卷宽 | H | 14 | mm |
| 音圈线材 | 耐高温SV线 | ||
| 音圈骨架 | AL | ||
| 磁路 | |||
| 磁路型式 | 单磁式大磁路 | ||
| 磁体材料 | 高性能铁氧磁 | ||
| 力系数(BL值) | BL | 9.09 | N/A |
| 磁隙高度 | He | 6.0 | mm |
| 最大线性位移 | Xmax | 4.9 | mm |
| Smal/ Thiele参数 | |||
| 顺性 | Cms | 500.35 | uM/N |
| 机械Q值 | Qms | 2.12 | - |
| 电Q值 | Qes | 0.47 | - |
| 总Q值 | Qts | 0.38 | - |
| 振动质量 | Mms | 17.5 | g |
| 等效容积 | Vas | 13.3 | L |
| 推荐箱体参数 | |||
| 箱体类型 | 倒相式 | ||
| 推荐箱体净客积 | Vb | 15.1 | L |
| 倒相箱调谐频率 | Fb | 50 | Hz |
| 箱体在自由场-3dB频率 | F3 | 47 | Hz |
