Swan HCS1500 Wired Digital Control Conference System
Model


HCS1500Wired Digital Conference System

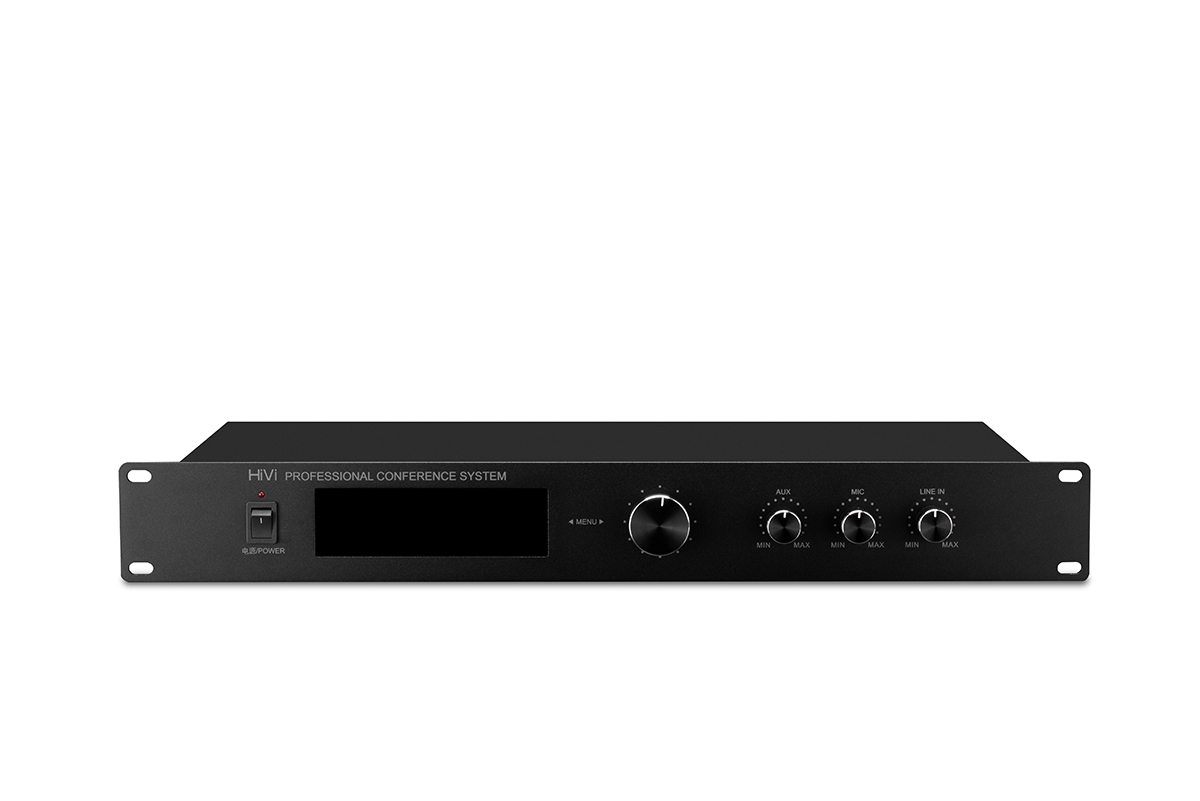

HCS1500CCU Wired digital control conference host

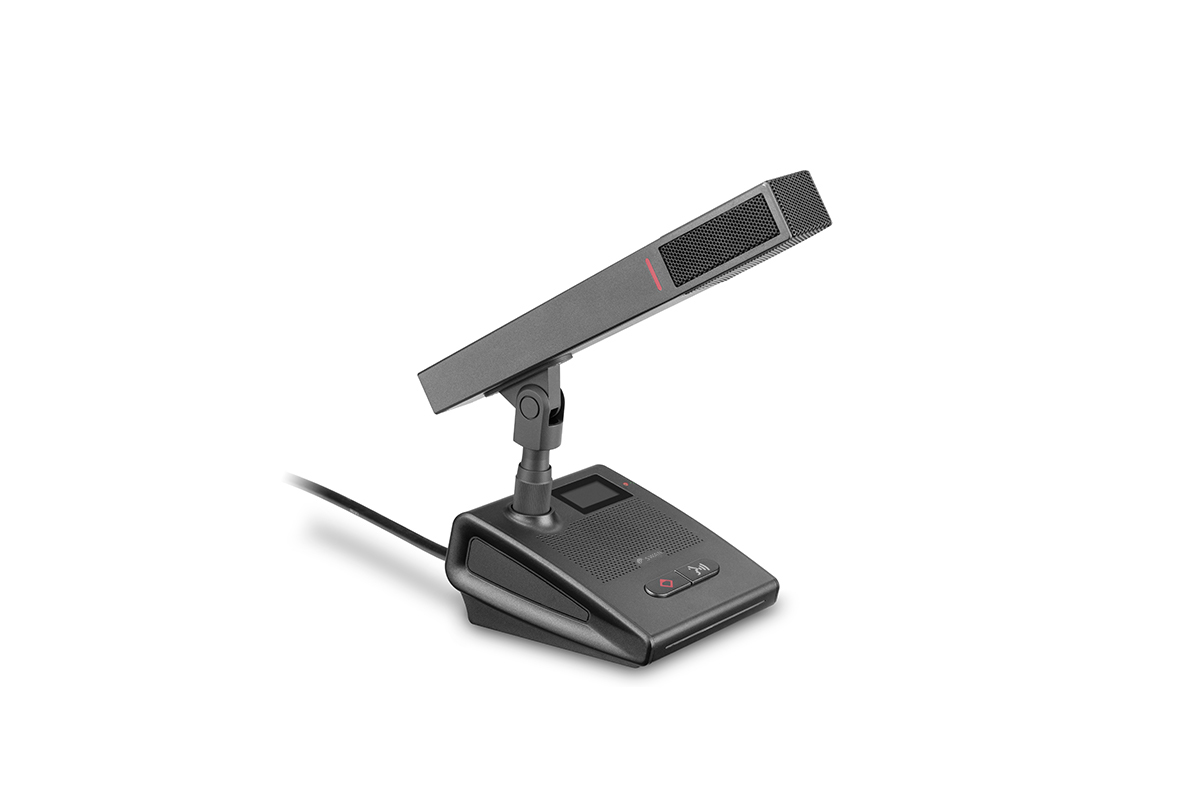

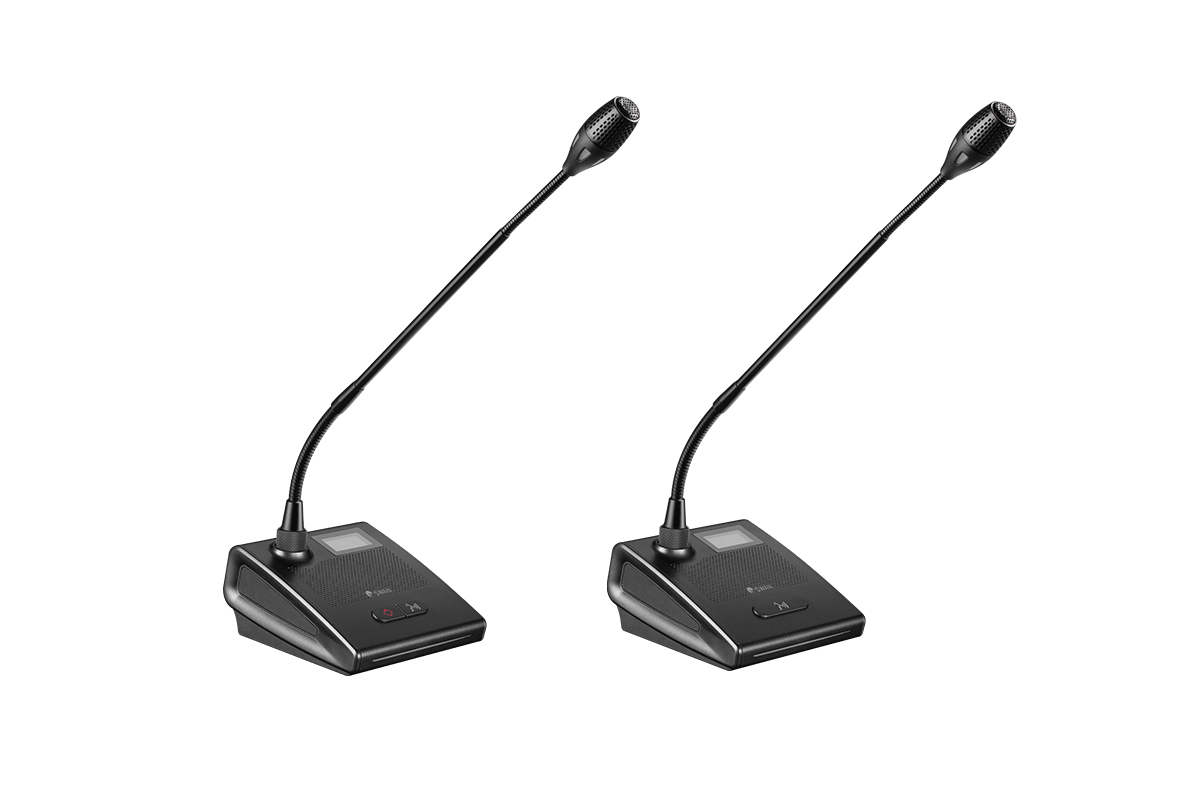

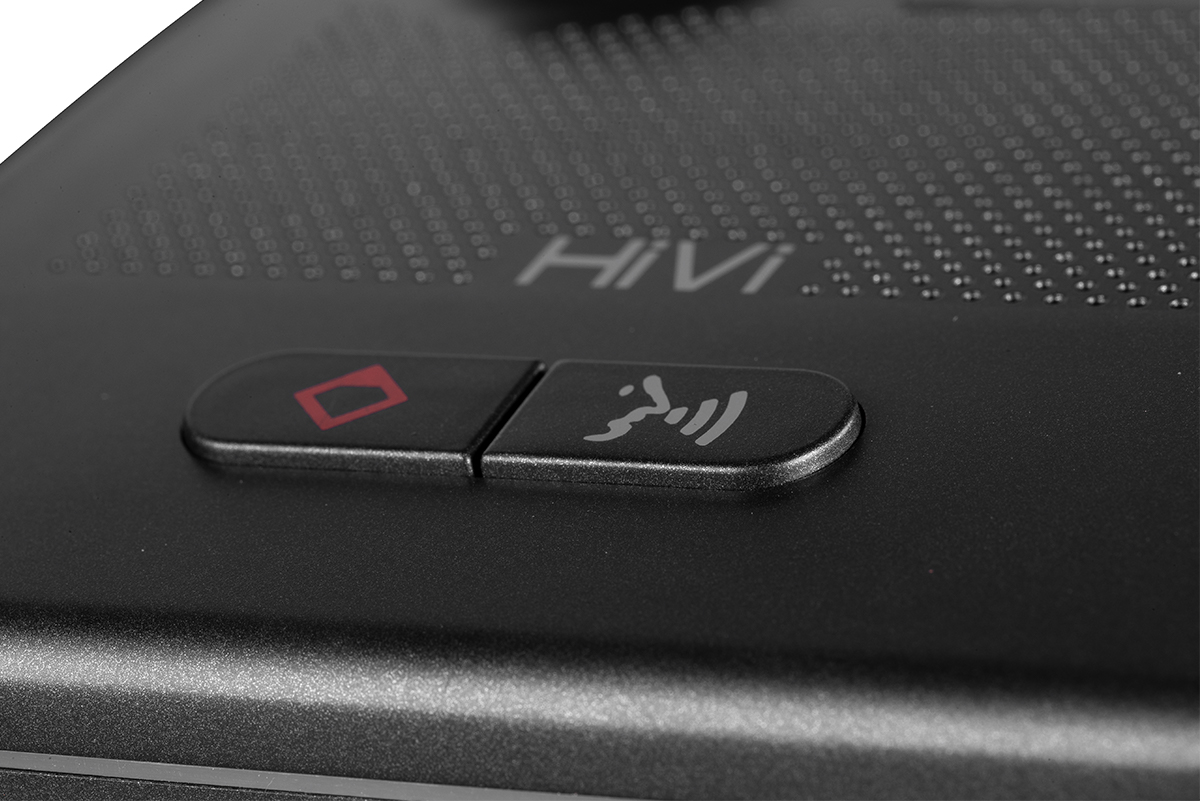

HCS1500C Speaking chair

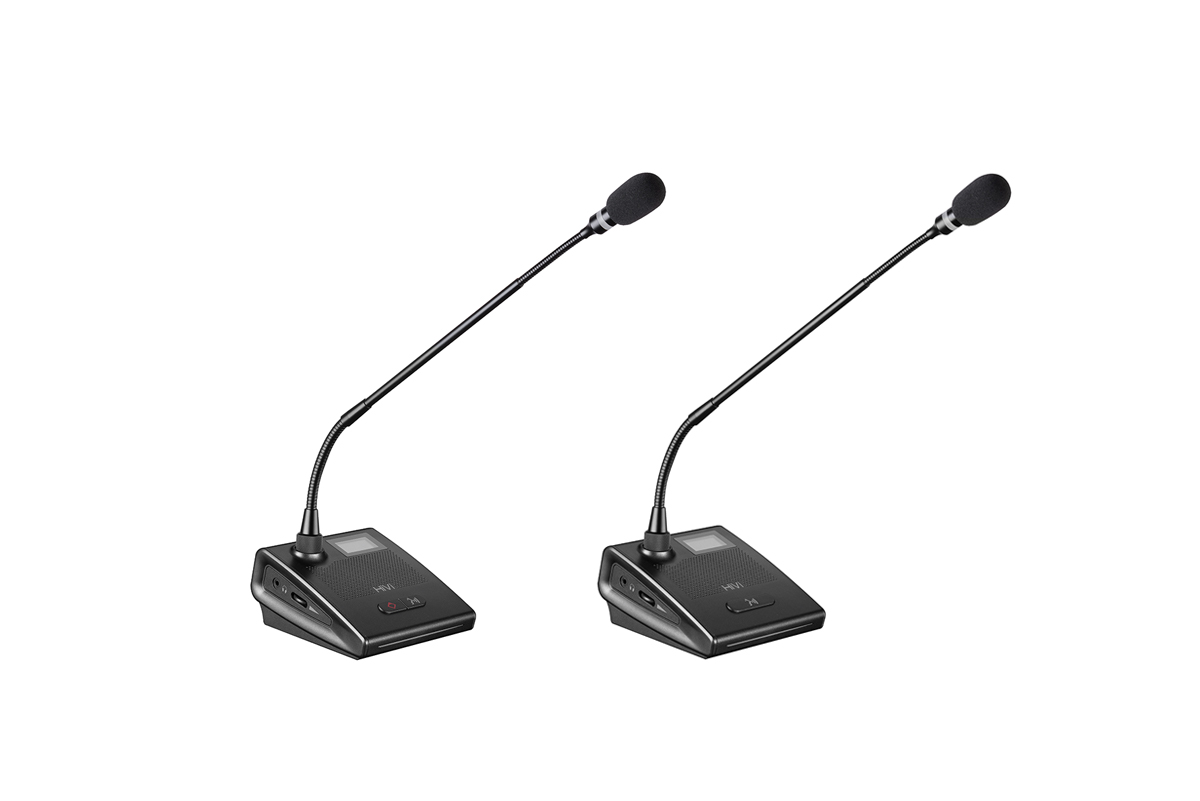

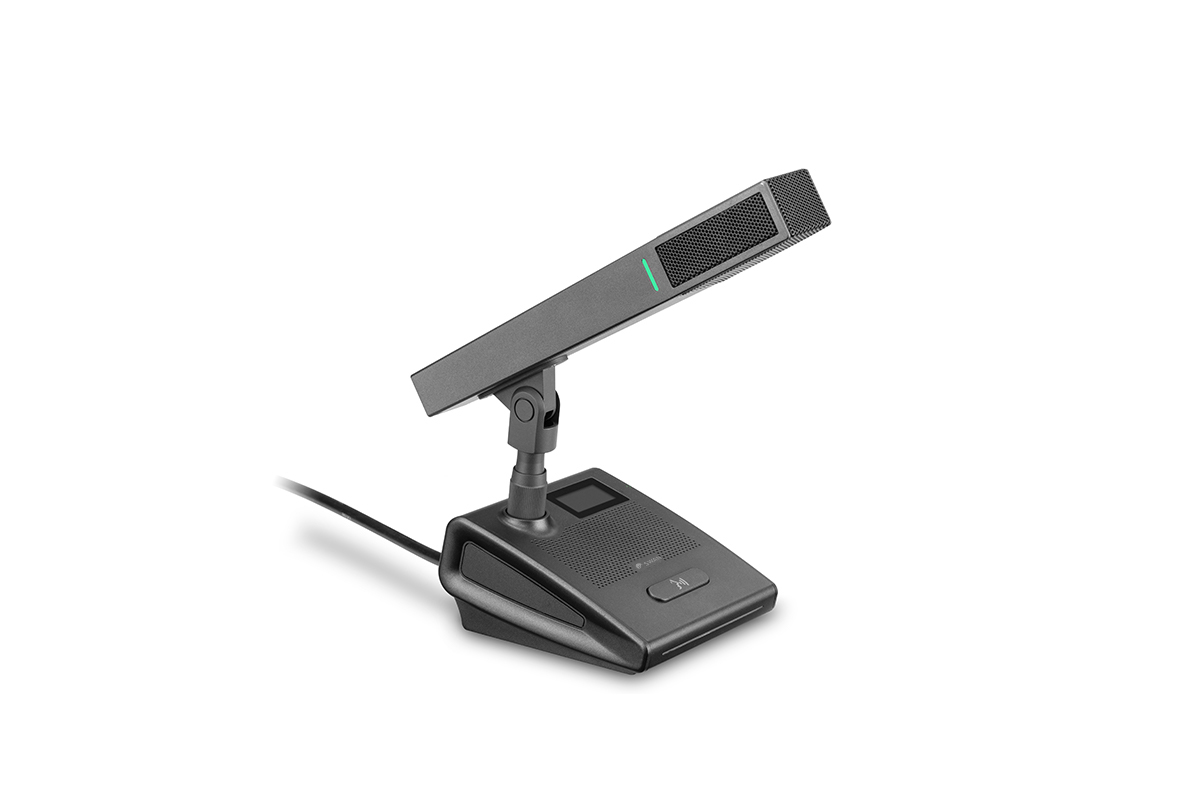

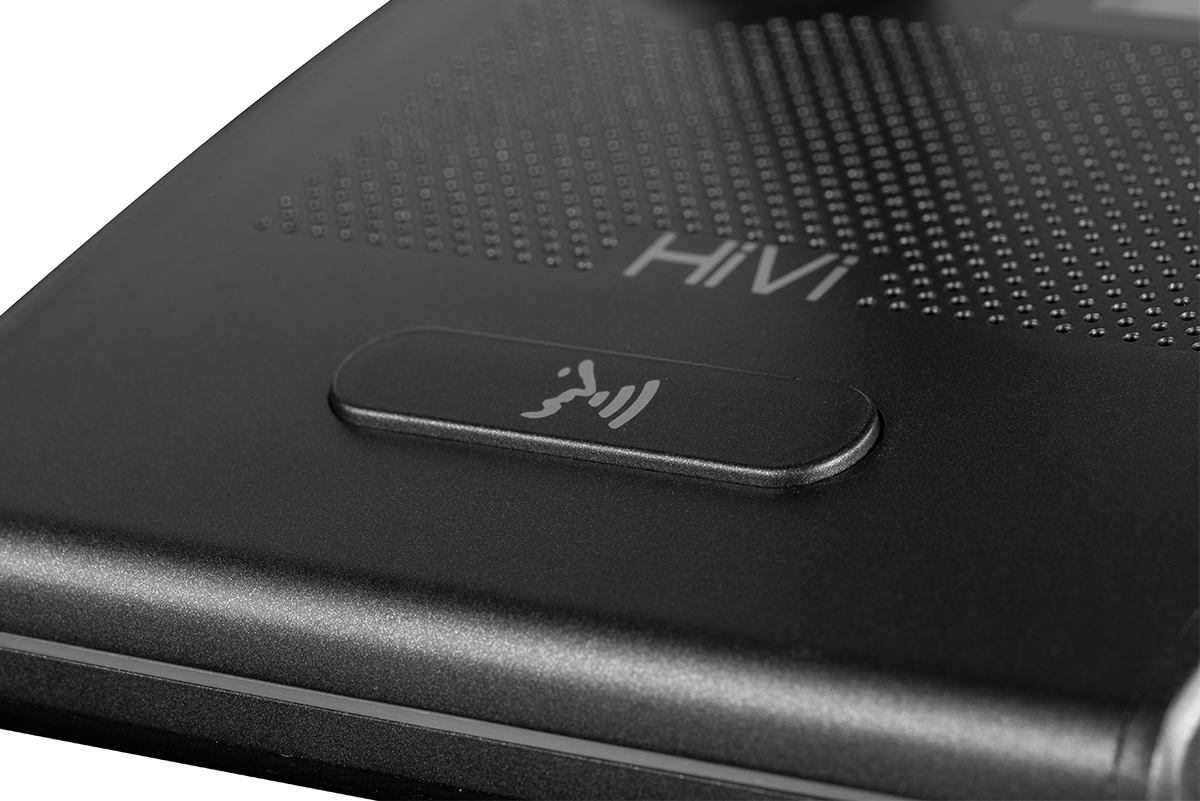

HCS1500D Speaking representative

HCS1500 is an electronic conference equipment specially designed and developed by Swans according to the needs of the conference industry to adapt to modern medium and small conferences. The system includes: conference host computer, conference unit (speaking chairman, speaking representative), connecting wire (eight-core wire, T-shaped head), PC computer (optional), HCMS conference system management software (optional), video matrix ( Optional), high-definition camera dome (optional) and peripheral audio equipment, display equipment, matrix switcher supporting equipment.
The HCS1500 system supports conference discussions, extended camera tracking and other functions. The system has high reliability, convenient terminal operation, rich and clear information display, online upgrade function, and low maintenance cost.


1. Adopt digital bus control technology;
2. It has the functions of speaking and applying for speaking, and supports FREE , LIMIT, APPLY , FIFO , PTT  ( with the management software HCMS);
3. Conference key sign-in function;
4. Combined with conference management software, it has the functions of back-office supplementary reporting and cancellation;
5. The camera dome control function, combined with the external video switching matrix, realizes camera tracking, which can meet the needs of different conference camera tracking occasions;
6. The default capacity of the system is 45 units. By expanding the host, the system capacity of 512 units can be realized;
7. The system supports 60 speakers in free mode and 6 speakers in non-free mode;
8. The chairman unit can prohibit or force the speech of the representative unit;
9. With conference mixing output volume adjustment knob (MIC), external microphone input volume adjustment knob (AUX), and overall unit volume adjustment knob (UNIT);
10. The system supports "hand in hand" and T-bus link;
11. When the system is offline, the terminal can be ID addressed by itself;
12. The system supports HCCP protocol, and the host and conference terminal can upgrade the software online;
13. To realize the camera and functions, it needs to be used in conjunction with the Swans conference management software HCMS.

· System connection diagram




| HCS1500CCU Wired digital control conference host

· Product Features

1. System settings and system information display, conference mode, maximum number of speakers, language and communication parameters settings;
2. Conference discussion mode management, with: (FREE), (LIMIT), (FIFO), (APPLY);
3. Support the program online update function of conference terminal and conference host;
4. Intelligent management conference terminal, with management functions such as registration, ID addressing, status management, and offline check-in;
5. Support speech camera tracking function (need to be combined with video matrix), support PELCO-D camera control protocol, support maximum 255 preset positions to save and recall;
6. Follow the HCCP conference system control protocol;
7. Support online and offline functions;
8. Data transparent transmission function, PC can indirectly manage the conference terminal through the host;
9. Transplantation uses LWIP lightweight TCP/IP protocol stack to make the host easier for future function expansion by extending the host port. Support the function of updating the host program in TFTP mode;
10. In online mode, it supports PC management of conference equipment, conference agenda control, conference parameter setting and terminal speech management functions.

· Technical Parameters

HCS1500CCU Conference host
Item Parameter
Audio frequency response 40HZ~18KHZ (±3dB)
THD (THD)<0.5% (40HZ~18KHZ,Normal)
SNR >70dB
Power Supply  AC110/220V± 10%
Recording audio output 0~2.8V Vpp
Working temperature  -20~50
Max. Power 350W
Dimension  428 x 240x 56mm(Without mounting accessories)
Weight 4.1KG
Capacity 45 units
MAX.capacity Connect one expansion host up to512 units
PC communication RJ-45
Other communication interfaces RS232
Camera tracking communication RS-485
Speech Mode (FREE),(LIMIT),(FIFO),(APPLY),(PPT)
Check-in mode Button
Speaker Limit 1/2/4/6
Camera Tracking Protocol PELCO-D
Audio input 1-way MIC audio input 1Vpp 75Ohm
LCD 256*64 White on Black+backlit DFSTN
System Expansion  Extensible connection to Swan HY system
Working temperature Indoor 0-45
Storage temperature Indoor -20-50




HCS1500C Speaking chair

· Product Features

1. Adopt digital bus control technology;
2. Has the function of speaking;
3. Speech timing reminder function;
4. Red and green two-color indicator ring and linear light strip, the speech is displayed in red, and the application is displayed in green;
5. Using 128*64 OLED black and white display, no blind area, can be clearly displayed at any angle;
6. Pattern information display, user-friendly operation;
7. With camera preset memory function;

· Product Function

1. It has the function of speaking and applying for speaking, and supports: FREE, LIMIT, APPLY application mode, FIFO, PTT;
2. Support button sign-in;
3. Speech timing reminder function;
4. Pattern information display, user-friendly operation;
5. There are 3 lengths of gooseneck microphone poles (standard 310mm, 410/510mm length optional, black standard); gun type microphone pole is optional (black), suitable for different occasions and meetings; detachable microphone pole, Easy to maintain and keep;

·Technical Parameters

Power consumption 1.6W
Audio frequency response 40Hz-18KHz
Pickup Sensitivity  -46dB±1dB,Heart-shaped
Display 128*64 White on Black+backlit LCD
Check-in Button
Pickup reference distance 100-600mm
Standard microphone pole length 410mm
Temperature
Working:Indoor 0-45
Storage Indoor -20-50
Power supply 24V
Weight 0.95kg
Dimension 110 x130 x 60mm


HCS1500D 发言代表

· Product Features

1. Adopt digital bus control technology;
2. Has the function of speaking;
3. Speech timing reminder function;
4. Red and green two-color indicator ring and linear light strip, the speech is displayed in red, and the application is displayed in green;
5. Using 128*64 OLED black and white display, no blind area, can be clearly displayed at any angle;
6. Pattern information display, user-friendly operation;
7. With camera preset memory function;

· Product Function

1. It has the function of speaking and applying for speaking, and supports: FREE, LIMIT, APPLY application mode, FIFO, PTT;
2. Support button sign-in;
3. Speech timing reminder function;
4. Pattern information display, user-friendly operation;
5. There are 3 lengths of gooseneck microphone poles (standard 310mm, 410/510mm length optional, black standard); gun type microphone pole is optional (black), suitable for different occasions and meetings; detachable microphone pole, Easy to maintain and keep;

Power consumption 1.6W
Audio frequency response 40Hz-18KHz
Pickup Sensitivity  -46dB±1dB,Heart-shaped
Display 128*64 White on Black+backlit LCD
Check-in Button
Pickup reference distance 100-600mm
Standard microphone pole length 410mm
Temperature
Working:Indoor 0-45
Storage Indoor -20-50
Power supply 24V
Weight 0.95kg
Dimension 110 x130 x 60mm
