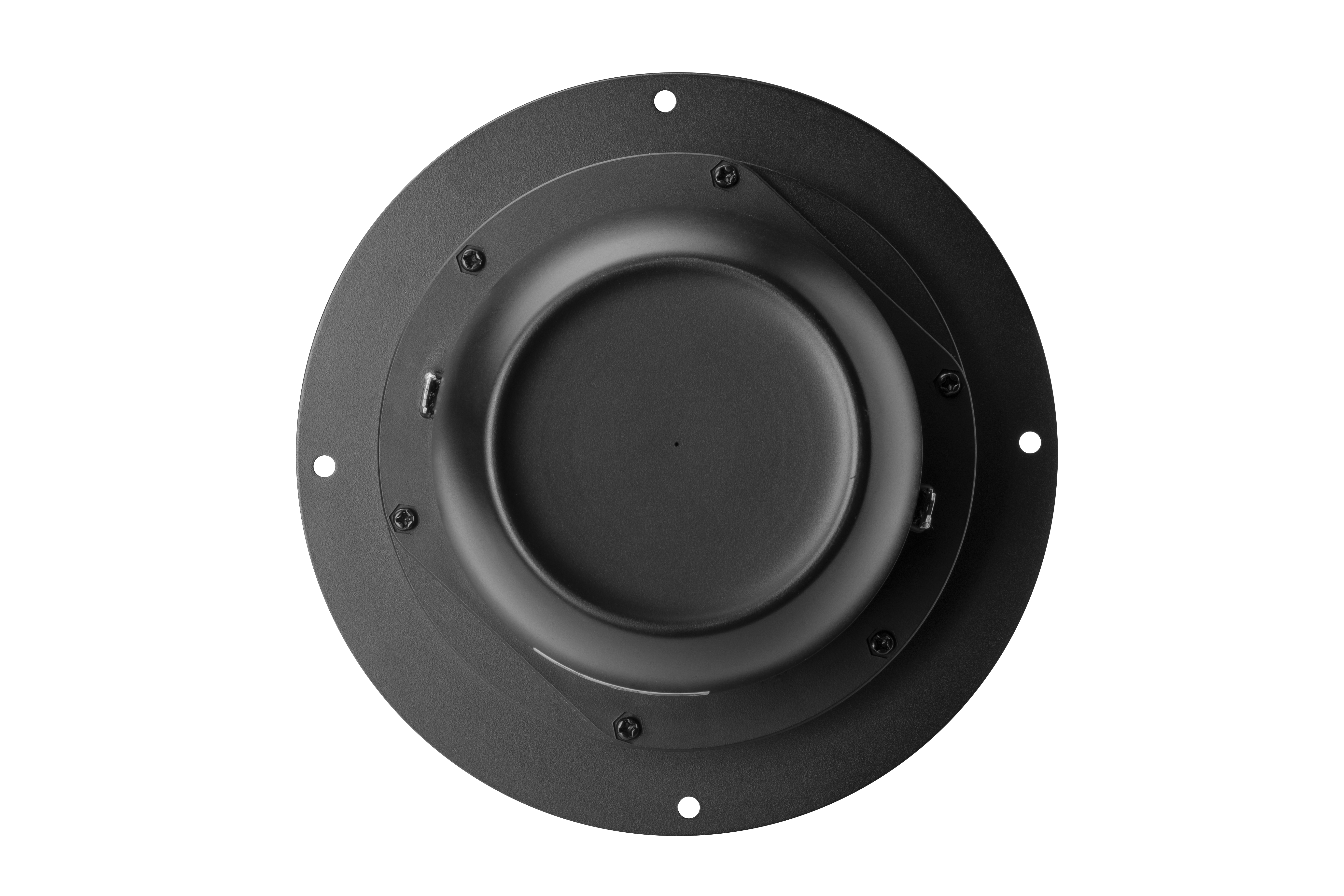

Swan DM-7600 Mid-range Speaker
$ -
Postage : $0.00
Speaker Driver Dome alto
Stock:
0
| Swan DM-7600 Parameters | |||
| Parameter names | Mark | Value | Unit |
| Basic application | |||
| Rated impedance | Z | 5 | Q |
| Resonance frequency | Fs | 300 | Hz |
| Rated power | Pnom | 20 | W |
| Max power | Pmax | 120 | W |
| Sensitivity(2.83V/1m) | E | 92 | dB |
| Weight | W | 0.75 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 75 | mm |
| DC resistance | Re | 4.1 | Q |
| Voice coil diameter | High temperature copper clad aluminum wire | ||
| Voice coil frame | High temperature resistance aluminum | ||
| Magnetic | |||
| Magnetic type | Internal magnetic circuit | ||
| Magnetic material | High performance NdFeB | ||
| Parameters | |||
| Recommnended crosoover(Hz) | >350,<6000Hz | ||
| Swan DM-7600 Parameters | |||
| Parameter names | Mark | Value | Unit |
| Basic application | |||
| Rated impedance | Z | 5 | Q |
| Resonance frequency | Fs | 300 | Hz |
| Rated power | Pnom | 20 | W |
| Max power | Pmax | 120 | W |
| Sensitivity(2.83V/1m) | E | 92 | dB |
| Weight | W | 0.75 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 75 | mm |
| DC resistance | Re | 4.1 | Q |
| Voice coil diameter | High temperature copper clad aluminum wire | ||
| Voice coil frame | High temperature resistance aluminum | ||
| Magnetic | |||
| Magnetic type | Internal magnetic circuit | ||
| Magnetic material | High performance NdFeB | ||
| Parameters | |||
| Recommnended crosoover(Hz) | >350,<6000Hz | ||
