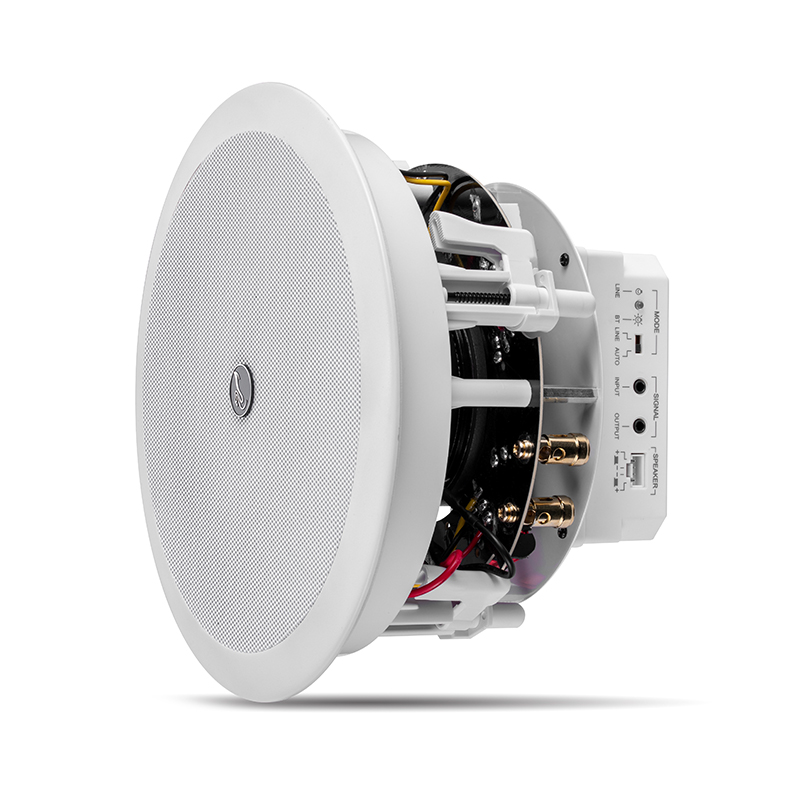

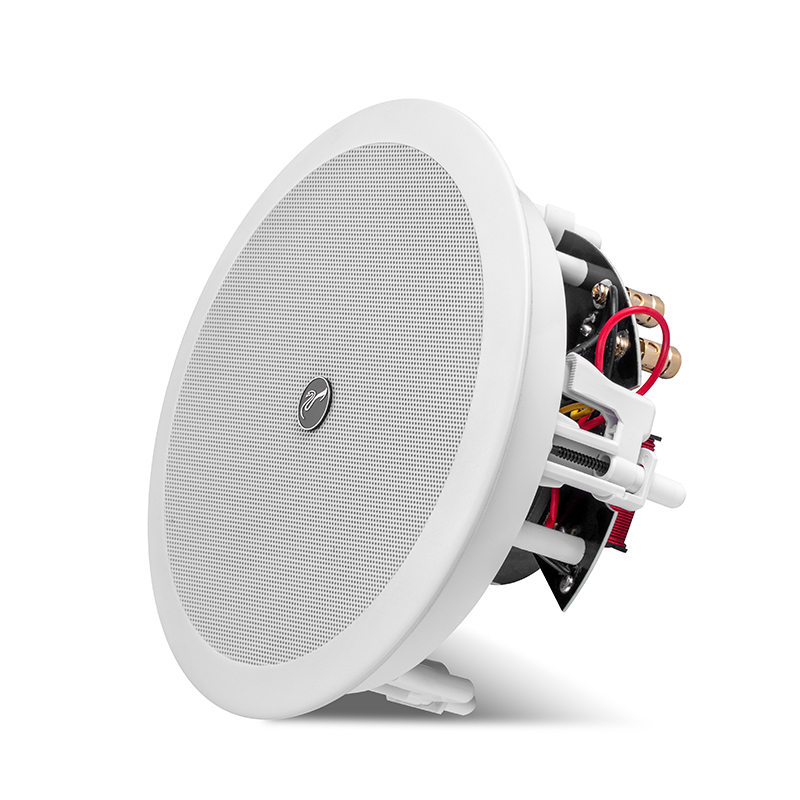

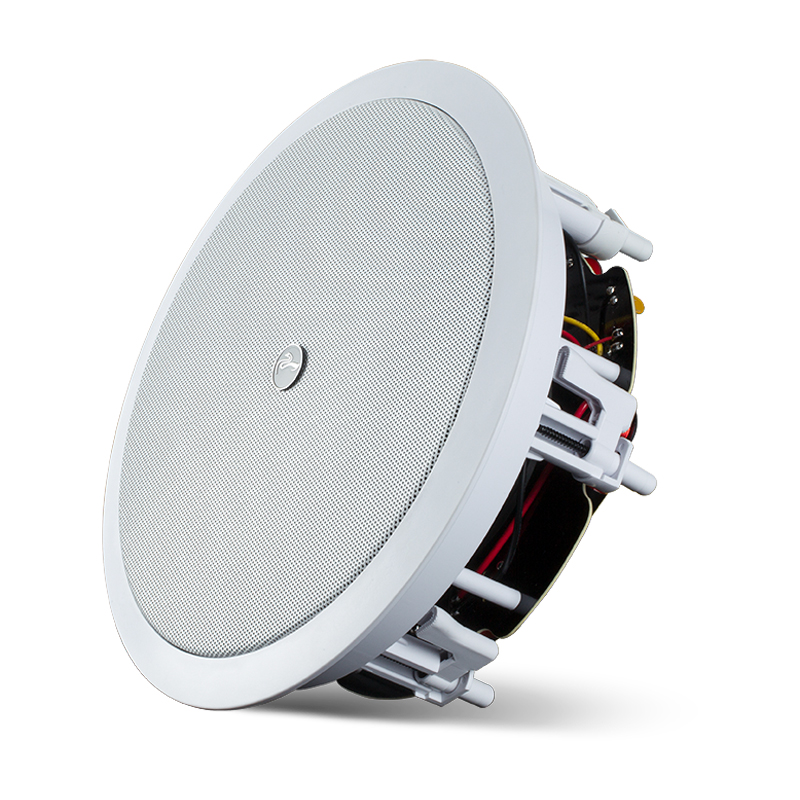

SWAN CQ Series Embedded Speakers
$ -
Postage : $0.00
Model
Pro Audio Embedded speaker
Stock: 0

Product Description

Swan embedded conference speaker system CQ series adopts high-strength mica carbonized polypropylene diaphragm, high-loss fatigue-resistant rubber ring; waterproof and moisture-proof, beautiful and elegant, and provides unimaginable language clarity. Adhering to the optimized design of Swans parameters, compared with similar products, the bass is more prominent. The tweeter adopts natural silk diaphragm, aerospace-grade ferrofluid cooling, and has strong power bearing capacity. All-aluminum alloy surface mesh, no rust, avoid future troubles, gold-plated all-copper terminals, provide excellent reliability. The flat frequency response curve, the sound performance is detached and refined, and the balance is good. The new single-speaker stereo design provides support for stereo in small spaces.

The flat frequency response curve of the CQ series, the sound performance is transcendent, and the balance is good. The new opening template design, the installation is simple and accurate. The new spray paint template design can be programmed to make them look exactly the same as the environment in which they are used. Built-in Bluetooth module, fast and stable connection, natural and clear sound.

It is suitable for various public places such as supermarkets, shopping malls, waiting rooms, hotels, etc. It is suitable for building an in-wall home theater system that is completely integrated with the home. It is suitable for small multi-room conferences, offices, business and other places.

Features:

1. Humanized design, easy to install and use.

2. Flame retardant, high strength, high adaptability engineering plastic, waterproof and not easy to change color.

3. CQ series adopts high-strength mica carbonized polypropylene diaphragm, high-loss fatigue-resistant rubber ring; waterproof and moisture-proof, beautiful and elegant, and provides unimaginable language clarity.

4. Adhering to the optimized design of Swans parameters, compared with similar products, the bass is more prominent.

5. The tweeter adopts natural silk diaphragm, aerospace-grade ferrofluid cooling, and has strong power bearing capacity.

6. All-aluminum alloy surface mesh, no rust, avoid future troubles, gold-plated all-copper terminals provide excellent reliability.

7. The flat frequency response curve, the sound performance is detached and refined, and the balance is good.

8. The new single-speaker stereo design provides support for stereo in small spaces.

9. The new opening template design makes the installation simple and accurate.

10. The new spray paint template design can make their appearance completely consistent with the use environment as needed.



Use:

1. Suitable for supermarkets, shopping malls, waiting rooms, hotels and other public places.

2. It is suitable for building an in-wall home theater system that is completely integrated with the home.

3. Suitable for small multi-room meetings, office, business and other places.

Parameters

Model

CQ5/CQ5-BT

CQ6/CQ6-BT

CQ62/CQ62-BT

CQ8/CQ8-BT

CQ82/CQ82-BT

Speaker power

40W

50W

60W

65W

80W

Woofer

5.25"

6.5"

6.5"

8"

8"

Tweeter

1"

1"

1"×2

1"

1"×2

Frequency range

50-20KHz

45-20KHz

45-20KHz

40-20KHz

40-20KHz

SPL

106 dB

108 dB

111 dB

110 dB

113 dB

Size

(diameter x height)

Passive

213×90mm

234×105mm

234×105mm

281×115mm

281×115mm

Active

213×137mm

234×153mm

234×153mm

281×165mm

281×165mm

Bore size

185mm

205mm

205mm

250mm

250mm

Amplifier peak power (active)

2×60W

2×120W

Minimum source EMF (active)

0.775V

0.775V

Signal-to-noise ratio (active)

>80dB

>80dB

Bluetooth distance (active)

>10m

>10m

Combination configuration relationship of passive system and active system



Active speaker system

CQ5-BT

CQ6-BT

CQ8-BT

CQ62-BT

CQ82-BT

Passive speaker

CQ5

CQ6

CQ8

CQ62

CQ82

Amplifier module

CQ5A

CQ6A

CQ8A

CQ62A

CQ82A

Model

CQ5A

CQ6A

CQ62A

CQ8A

CQ82A

Amplifier output power

2×60W

2×120W

Minimum source EMF

0.775V

Maximum sound pressure level

106dB

108dB

110dB

111dB

113dB

Signal-to-noise ratio: (A-weighted, 1KHz/8Ω)

>80dB

Bluetooth function, connection distance (unblocked)

>10m

Installation instructions
