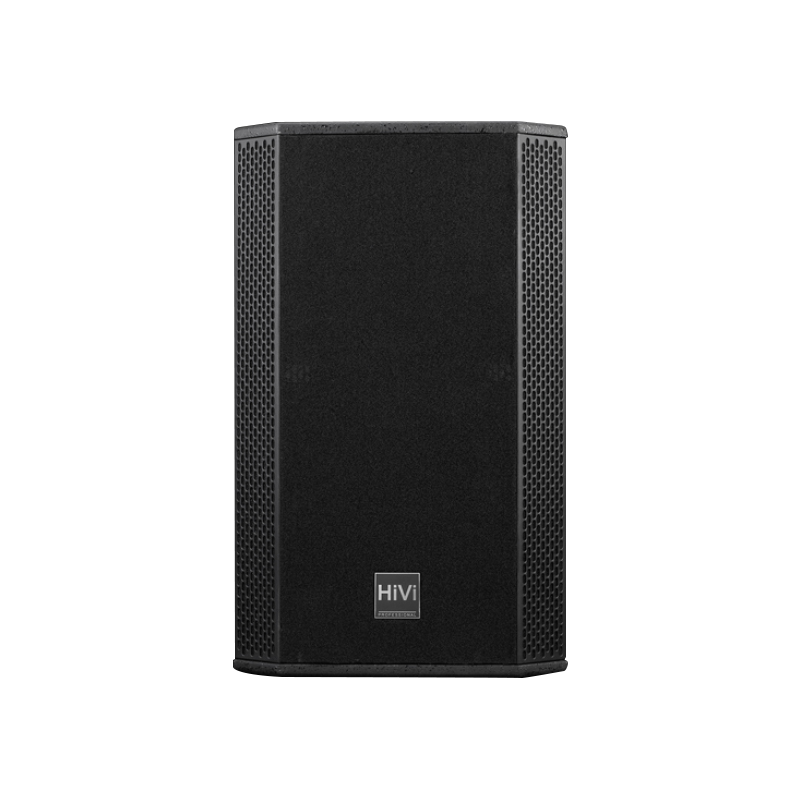

SWAN Q Series Entertainment Speakers
$ -
Postage : $0.00
Pro Audio Professional speaker Q series Entertainment Speaker Professional Speaker System
Stock:
0
|
Product Description |
||
| Q series is a two-way full-range speaker, designed for entertainment venues, and can also be used for sound reinforcement in conferences and multi-purpose halls. Using high-quality Swans electro-acoustic devices and stylish cabinet plates, it is dynamic and powerful. The multi-angle design can not only make the system installation more diverse, but also effectively suppress the sound diffraction of the system. The exterior has a high-strength black wear-resistant coating for easy system handling and installation. Swans high-quality molded steel mesh, effective protection unit, no resonance under high power. Equipped with a tripod stand and multiple M8 standard hoisting points, combined with a variety of installation accessories, the system's multi-functional features can be fully utilized. | ||
| Product Parameters | ||
|
Model |
Q10 |
Q12 |
| Frequency range | 55Hz-20KHz | 50Hz-20KHz |
| Rated input power |
300W(continual)
600W(program signal)
1200W(peak)
|
400W(continual)
800W(program signal)
1600W(peak)
|
| Sensitivity | 97dB(1W/1m) | 100dB(1W/1m) |
| SPL |
125dB(continual)
128dB(peak)
|
129dB(continual)
132dB(peak)
|
| Rated impedance | 8 Ω | 8 Ω |
| Coverage angle(HxV) | 100°x70° | 100°x70° |
| Woofer | 1x10"(65mm voice coil) | 1x12"(75mm voice coil) |
| Tweeter | 1x44mm Diaphragm tweeter | 1x44mm Diaphragm tweeter |
| Input connection | 2xSpeakon NL4 | 2xSpeakon NL4 |
| Install | M8 hanging | M8 hanging |
| Size(WxHxD) | 322x550x340mm | 380x620x380mm |
| N.W.(±10%) | 18 KG | 23.5 KG |
| Product Size | ||

|
||
| Function indication | ||
  |
||
