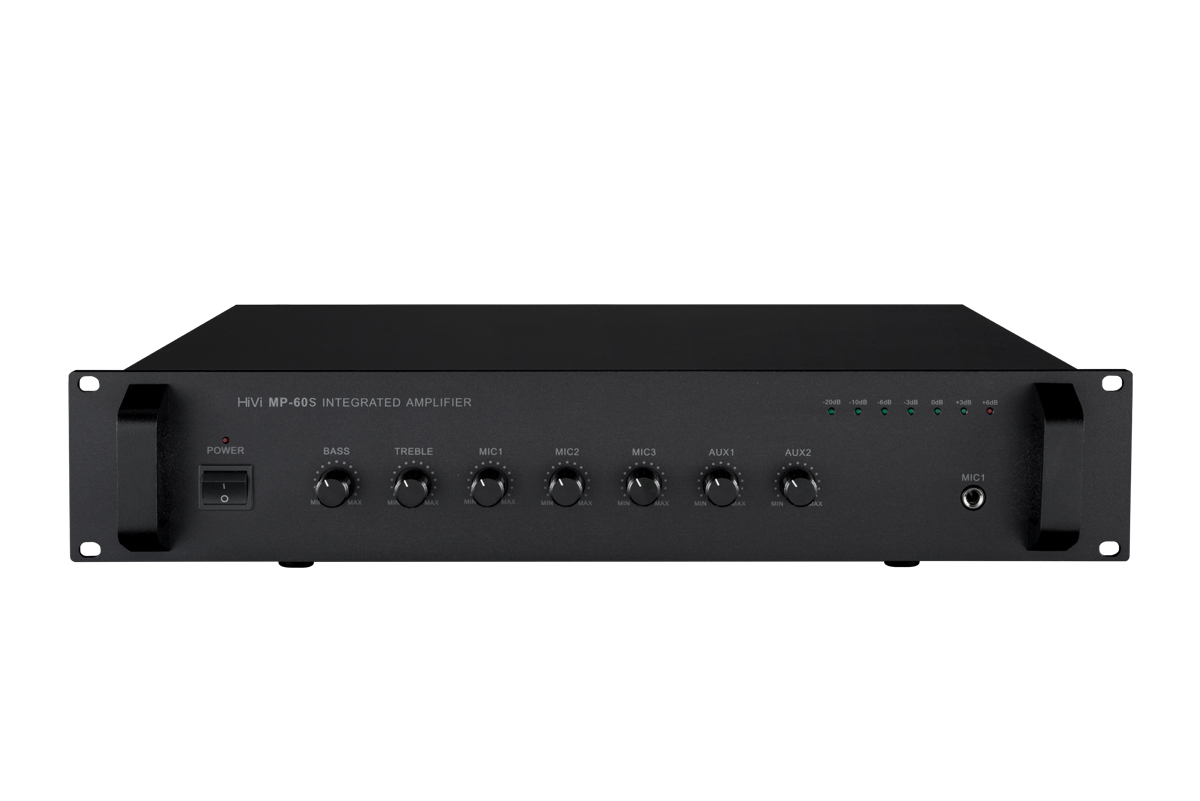

Swan MP series constant pressure combined power amplifier MP-60S/MP-120S/MP-240S/MP-360S
$ -
Postage : $0.00
Public Broadcasting Broadcast amplifier series MP Series Constant Voltage Integrated Amplifier
Stock:
0
Swan MP-S series is an upgraded model of MP series. According to different usage conditions, the high-quality broadcast dedicated constant-voltage integrated power amplifier has designed 4 models with different powers: MP-60S, MP-120S, MP-240S, MP -360S.
MP series power amplifiers are high-performance, high-stability, and high-reliability first-class products carefully developed by using technology and craftsmanship, making the sound clearer and more transparent, sound quality comparable to HiFi products, sufficient output power, and wider frequency response , more layered. It is widely used in hotels, buildings, squares, intelligent communities, factories, schools, airports, docks and other places to play, announce, background music, mutual communication, fire alarm, etc.
Feature of product
1. Two MIC, one CD, one AUX input, one PRI priority input
2. One channel of emergency signal EM input, cooperate with fire center or A-8605 to realize fire linkage broadcast
3. MIC1 has priority mute function
MP series power amplifiers are high-performance, high-stability, and high-reliability first-class products carefully developed by using technology and craftsmanship, making the sound clearer and more transparent, sound quality comparable to HiFi products, sufficient output power, and wider frequency response , more layered. It is widely used in hotels, buildings, squares, intelligent communities, factories, schools, airports, docks and other places to play, announce, background music, mutual communication, fire alarm, etc.
Feature of product
1. Two MIC, one CD, one AUX input, one PRI priority input
2. One channel of emergency signal EM input, cooperate with fire center or A-8605 to realize fire linkage broadcast
3. MIC1 has priority mute function
Technical parameter
Model
MP-60S
MP-120S
MP-240S
MP-360S
Rated
power
60W
120W
240W
360W
Power
consumption
120W
240W
480W
720W
Input sensitivity
AUX 250mV （unbalance）MIC
5mV （unbalance）
CD500mV （unbalance）PRI250mV （unbalance）EM IV （balance）
Volume adjustment knob
BASS: ±10dB TREBLE: ±10dB
Linear
Distortion
Ml% (100% power)
SNR
LINE>65dBMIC>65dB
Priority
EM>PRI>MIC1> other
Frequency
response
70Hz-18KHz (±3dB)
output
regulation
<3dB
Auxiliary
output
Unbalance 0.775V
Protect
Overload protection, short circuit detection protection, over
temperature protection
Power
supply
AC 220V± 10% 50Hz~60Hz
Body size
(mm)
484x359x132
Net
weight (kg)
8.6
10
12.6
14.3
Gross
weight (kg)
9.6
11
13.6
15.3
