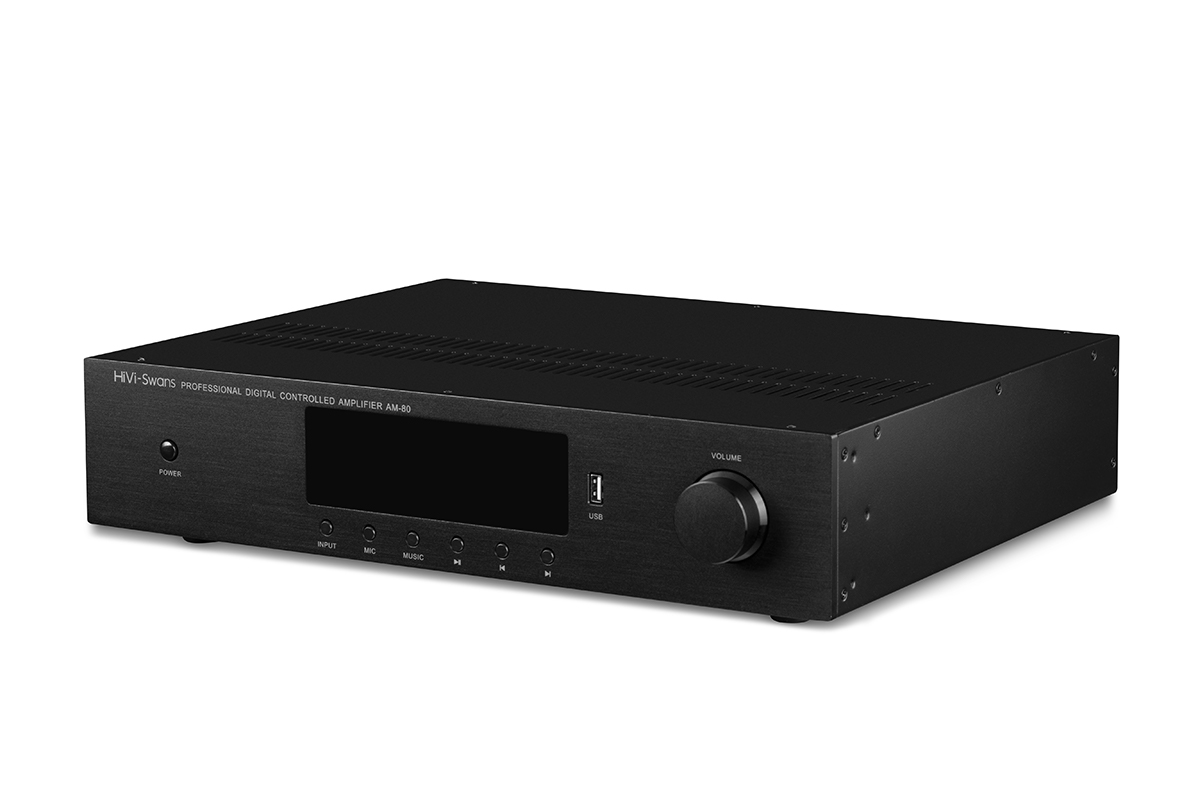

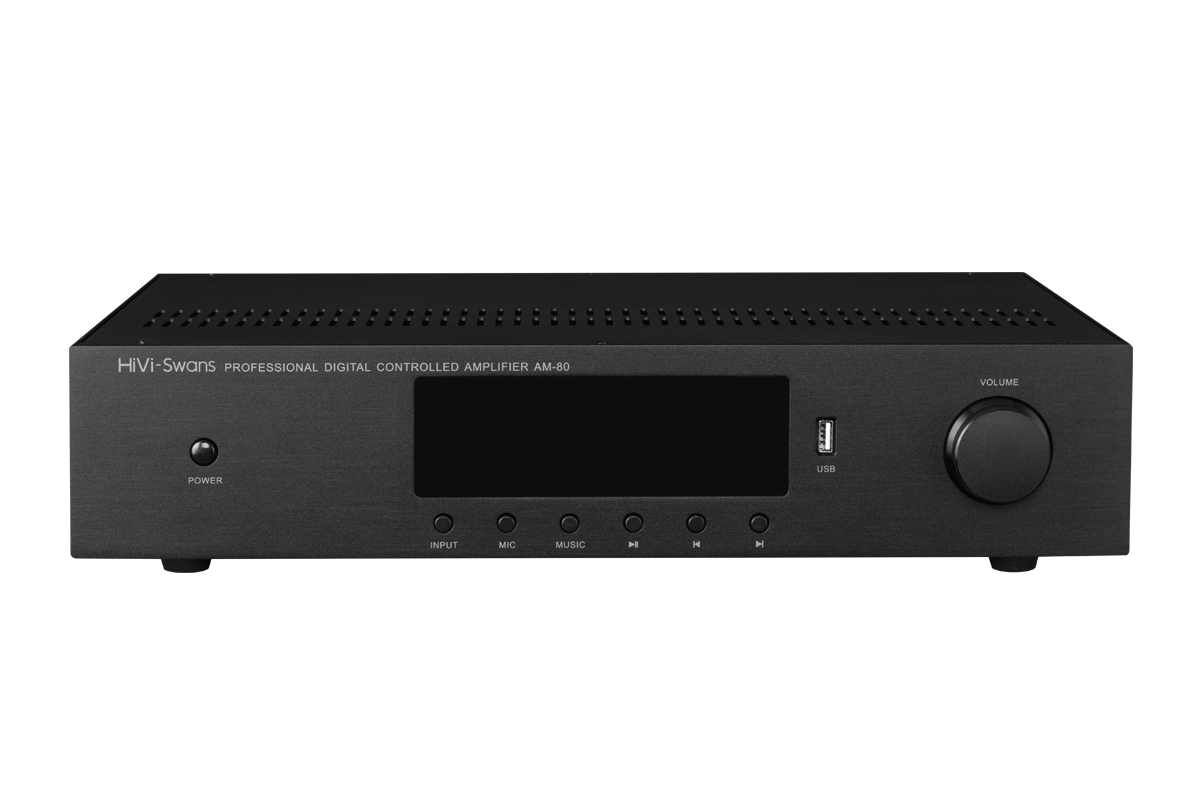

Swan AM series professional audio power amplifier AM-80/AM-150
$ -
Postage : $0.00
Public Broadcasting Broadcast amplifier series
Stock:
0
Swans professional audio series products are high-quality sound reinforcement system products specially developed and designed by Swans for various indoor and outdoor places. HiVi professional audio series power amplifiers are carefully developed by drawing on today's international superior technology and craftsmanship. They are high-performance, high-stability, and high-reliability products. The sound is clearer and more transparent, and the sound quality is comparable to Hi-Fi products. The power is sufficient, the frequency response is wider, the sound is more penetrating, and the sound is more layered. It is one of the preferred products for many users and units.
Feature of product
1. The new appearance design highlights the simple and fashionable style;
2. Built-in bluetooth module, you can connect with mobile phone to play music through bluetooth;
3. The panel provides a USB socket, which is convenient to use the U disk to play music;

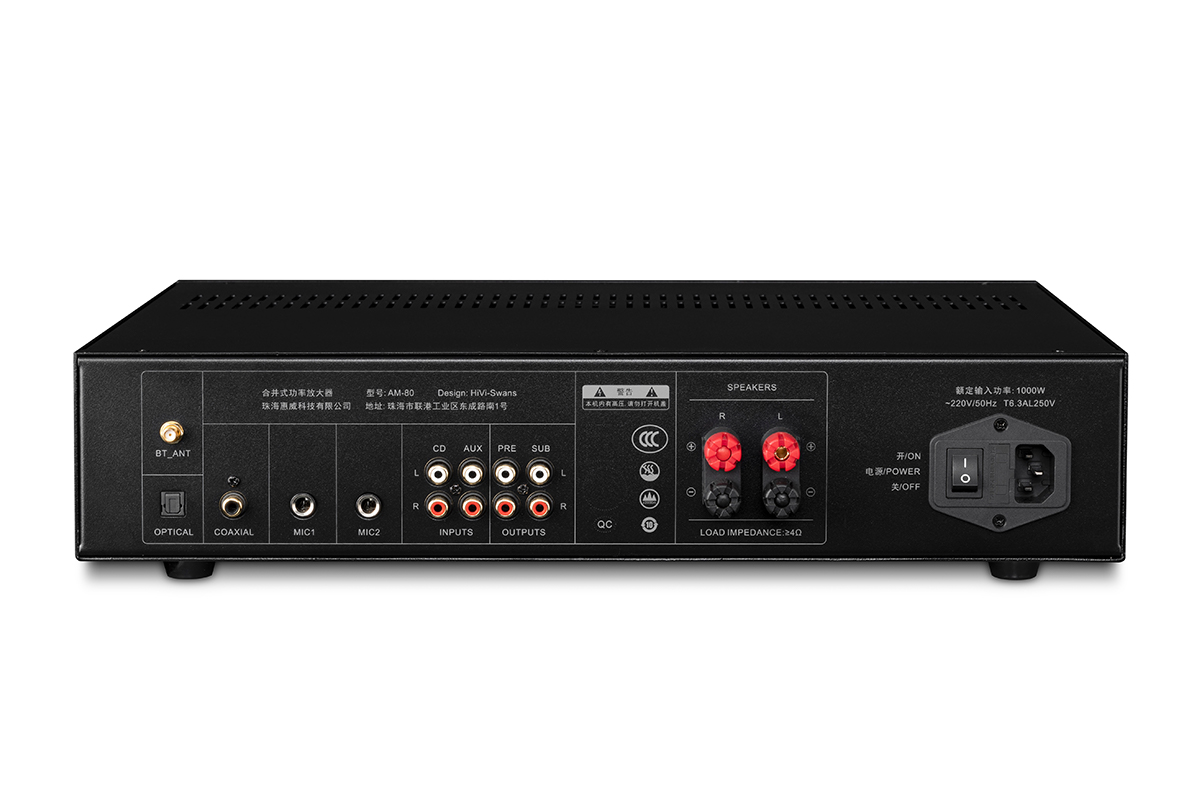

4. With optical fiber and coaxial input interface, it is convenient to connect various digital audio sources;
5. With 2 independent analog audio input (CD and AUX), it is convenient to connect various analog audio sources;
6. With 2-way MIC input, built-in tone, delay and reverberation adjustment functions, the karaoke effect can meet the requirements of home entertainment;
7. Music playback provides ±10dB high and low balance adjustment;
8. HiFi-level power amplifier circuit design makes this machine have extraordinary sound quality;
9. Built-in multiple protections to ensure that the machine can work stably and reliably for a long time;
10. The machine is equipped with an infrared remote control, which is convenient for operation and use;
Product parameters
Feature of product
1. The new appearance design highlights the simple and fashionable style;
2. Built-in bluetooth module, you can connect with mobile phone to play music through bluetooth;
3. The panel provides a USB socket, which is convenient to use the U disk to play music;
4. With optical fiber and coaxial input interface, it is convenient to connect various digital audio sources;
5. With 2 independent analog audio input (CD and AUX), it is convenient to connect various analog audio sources;
6. With 2-way MIC input, built-in tone, delay and reverberation adjustment functions, the karaoke effect can meet the requirements of home entertainment;
7. Music playback provides ±10dB high and low balance adjustment;
8. HiFi-level power amplifier circuit design makes this machine have extraordinary sound quality;
9. Built-in multiple protections to ensure that the machine can work stably and reliably for a long time;
10. The machine is equipped with an infrared remote control, which is convenient for operation and use;
Product parameters
| Model | AM-80 | AM-150 | |
| RMS output power | 8Ω | 80W | 150W |
| 2-way load, 1KHz, THDV0.5% | 4Ω | 130W | 240W |
| Frequency response | LINE input，80 loaded，rated power 20HZ-20KHZ | ||
| MIC input, 8Ω negative, rated power | |||
| Input sensitivity | LINE input (1lKHz, 8Ω load rated output) 220mV±5% | ||
| MIC input (1KHz, 8Ω load rated output) 10mV±5% | |||
| SNR | LINE input @A weighted ≥85dB | ||
| MIC input @A weighted ≥75dB | |||
| Channel separation | LINE input,1KHz ≥60dB | ||
| Tone circuit | Line,MIC treble 10dB@10KHz | ||
| Line,MIC bass 10dB@100Hz | |||
| Overcurrent and short circuit protection | output amplitude | ≥5V | |
| USB supported formats | U disk playback | WMA.MP3.APE.Flac | |
| Power Requirements | AC220V,50Hz | ||
| Maximum power | 720W | 1200W | |
| Size | 484x337x88mm | ||
| Net weight (kg) | 10.92 | 11.63 | |
