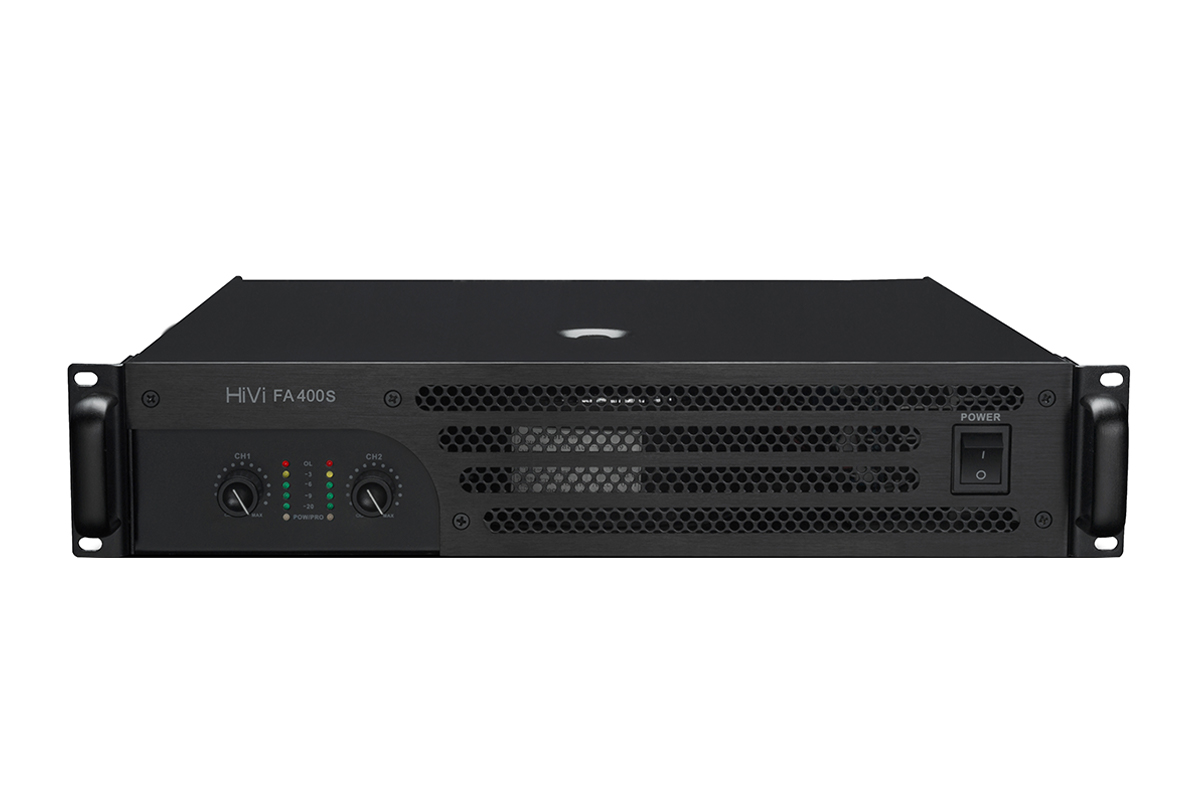

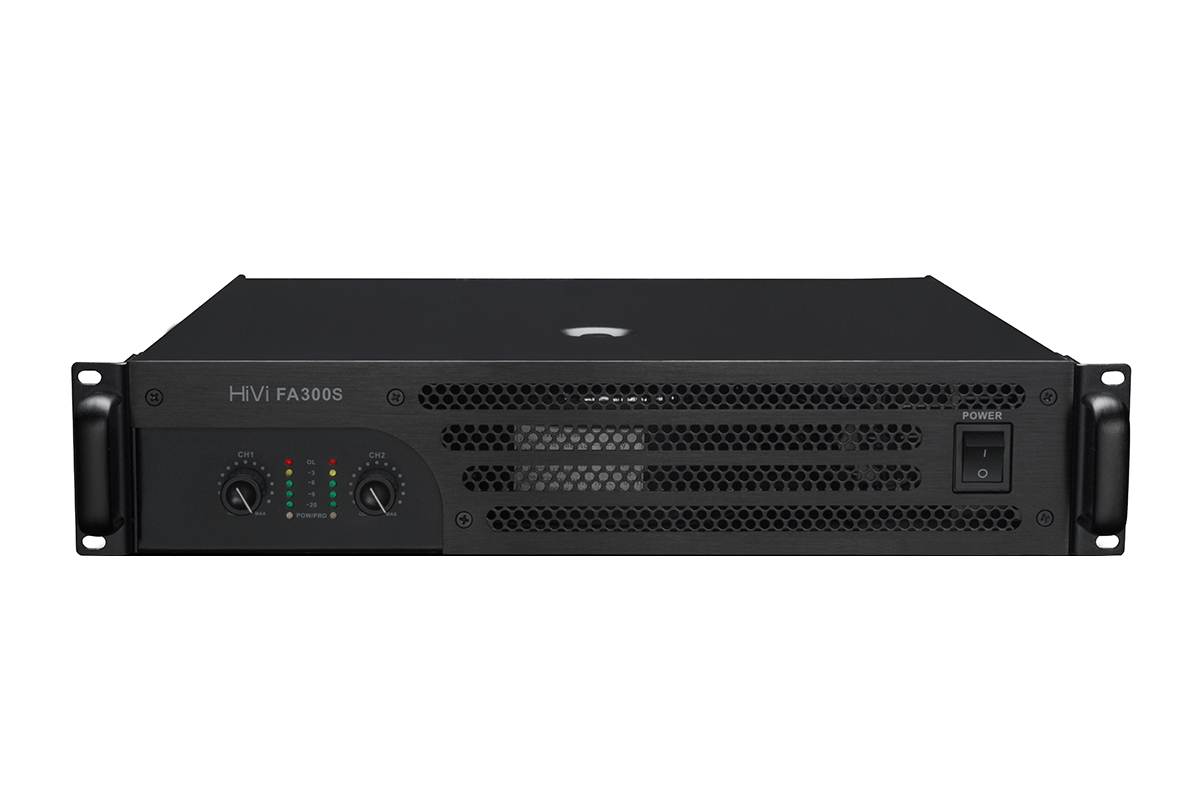

Swan FA series professional audio power amplifier FA300S/FA400S/FA600S/FA900S
$ -
Postage : $0.00
Public Broadcasting Commercial & background system Conference System Conference sound reinforcement system Professional Amplifier Series Business background power amplifier
Stock:
0
Feature of product
Simple operation, professional and efficient, stylish appearance, flexible installation, can work safely and continuously for a long time
Simple operation, professional and efficient, stylish appearance, flexible installation, can work safely and continuously for a long time
Technical parameter
Model
FA300S
FA400S
FA600S
FA900S
8Ω Stereo
Power
350W
450W
650W
900W
4Ω Stereo
Power
550W
700W 1050W
1400W
8Ω bridge
power
1100W
1400W 2100W
2800W
Frequency
response
20Hz-20kHz
(± 0.5dB)
Total
harmonic distortion
0.05% （normal working conditions 1KHZ/8Ω）
SNR
>105dB
(1KHz,0.775V A weighted)
Damping
coefficient
>400
Slew rate
>10V/uS
Input
sensitivity
0.775V/lV/32dB
Input
resistance
20kΩ/10kΩ （balance/unbalance）
Voltage
gain
(1KHZ/8Ω/0.775V)
36.7dB
37.8dB
39.4dB
40.8dB
Cool down
Stepless fan speed
regulation, air from front to back
Protective
function
Soft start/gram
flow/short circuit/overheating protection/high frequency
protection/distortion voltage limiting/boot volume fade-in
Input
Balanced Input XLR
Female Socket / Balanced Parallel XLR Male Socket
Output
Two red and black
binding posts / Speakonf NL4) socket
Front
panel
Power
switch/independent channel sound control knob/power indication/signal
indication/peak clipping indication/protection indication
Backplane
Mode selector
switch/sensitivity selector switch
Dimensions
482x382.5x88mm
Net
weight (±0.5kg)
15.5
16.8
17.7
19.5
